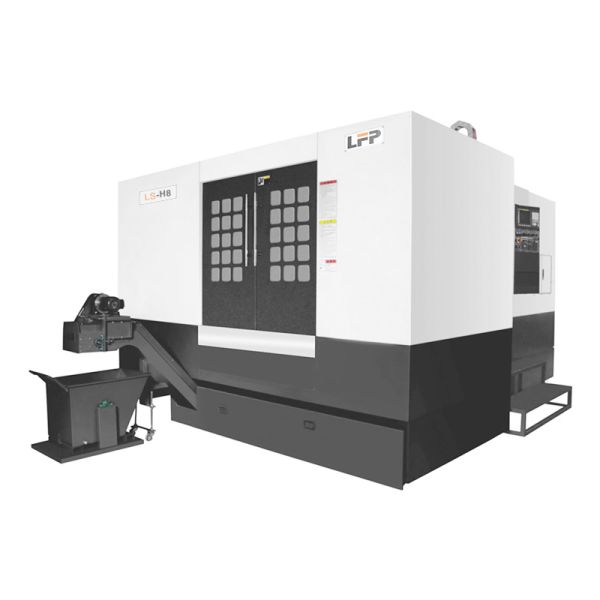

Compact 300mm Horizontal Machining Center LS-H8 For Auto Parts Industry

  • 1
  • 2

Brand Name : Lishang Precision Machinery

Model Number : CNC LS-H8

Certification : CE ISO

Place of Origin : Shenzhen China

MOQ : 1

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 500/month

Delivery Time : 15-30days

Packaging Details : durable case

Name : Compact Horizontal Machining Center

X/Y/Z axis travel : 800/650/650mm

Maximum load : 350kg

Spindle speed : 12000rpm

Spindle diameter : 150mm

Cutting feed speed range : 1-15000mm

X/Y/Z axis fast moving speed : 48/48/48mm

Tool magazine capacity : 24/32/40bundle

Tool length : 300mm

Machine weight (approx.) : 6000kg

Contact Now

Compact and Fast HT300 High Strength CNC LS-H8 Horizontal Machining Centre for Auto Parts Industry.

LS-H8 is a small and medium-sized high-efficiency horizontal machining center with the characteristics of compact structure, fast speed, high precision and good stability. After the workpiece is clamped once, it can be matched with a 0.001° rotary table to realize arbitrary indexing and linkage processing, and can complete multiple processes such as milling, drilling, boring, expanding, reaming, countersinking, tapping, etc. on multiple surfaces. It is mainly suitable for batch processing of small and medium-sized boxes, plates, discs, valves, shells and other complex parts in the new energy automobile industry and LED industry.

Compact 300mm Horizontal Machining Center LS-H8 For Auto Parts Industry

Product specification

Item Unit parameter

Travel range

 X/Y/Z axis travel MM 800/650/650
Maximum rotation diameter MM φ1000

Workbench

Spindle

 Workbench size MM 400×400
Maximum load KG 350
Minimum indexing angle o 0.001°
T-slot (number of slots × slot width × spacing) MM 5×14×80

Screw

Guide rail

Speed

 Spindle speed RPM 12000
Spindle taper / BT40
Spindle diameter MM φ150
Diameter/pitch (X/Y/Z) / 4016
Accuracy Linear rail width (X/Y/Z) / 35MM(eavy load of rollers)

Tool magazine

 Cutting feed speed range MM/MIN 1-15000
X/Y/Z axis fast moving speed M/MIN 48/48/48

Other

 Positioning accuracy (X/Y/Z) MM 0.01(total excursion)
Repeat positioning accuracy (X/Y/Z) MM 0.006(total excursion)

Travel range

 Tool magazine capacity Bundle 24/32/40
Tool length MM 300
Workbench Maximum diameter (full tool/nearly empty tool) MM φ75/Φ120
Machine weight (approx.) KG

6000

Product Feature

  1. Compact structure,
  2. Fast speed
  3. High precision and good stability
  4. Structure is compact, and the body adopts a large and stable base
  5. Dynamic response is fast and immediate
  6. Big tool magazine capacity
  7. User-friendly and highly efficient water tank

Application

  1. Auto parts industry.
  2. Bath-ware industry.
  3. 3C products like computer, communication, and consumer electronics manufacturing industry.
  4. Aviation industry.

Compact 300mm Horizontal Machining Center LS-H8 For Auto Parts Industry

Compact 300mm Horizontal Machining Center LS-H8 For Auto Parts Industry
